MC Series Mobile Crushing & Screening Plant

1. Flexible convenient and versatile. It can save a lot of infrastructure and removal cost.

2. Reasonable compact space layout greatly reduces the the occupied space of the equipment in the field.

3. Crushing materials in working site immediately and moving with the mining surface of raw materials greatly reduce the material transportation cost.

4. The equipment chassis is high and the turning radius is small make it easy to travel on ordinary road and the rugged road.

5. It can use external power supply as well as high reliability diesel generator.

6. The technology for crushing and screening equipment is mature structure is compact and performance is stable.

The tire mobile crushing plant can choose jaw crusher, impact crusher, cone crusher or vertical shaft impact crusher, etc as it’s mainly frame, the raw material is delivered into the crusher evenly by feeder and then to be crushed, the crusher will constitute a closed system with round vibrating screen, as to crush the material circularly, the output material with size meet the requirement will be delivered out by the belt conveyors. It’s widely used in mining ore crushing, construction waste recycling, construction aggregate producing, high way, railway, roads and bridges construction, etc.



1. Equip magnetic separator, which is suitable for recycle the city construction waste.

2. Can be equipped with independent generator sets.

3.Advance technology, simple operation and easy maintenance.


Economy advantages

1.To save about 90 days preparatory period.

2.To save the high cost on foundation, installation of steel frame, testing and etc.

Technical Parameters

Transport Length(mm)1280012150Transport Length(mm)12200
Transport Width(mm)30502900Transport Width(mm)2800
Transport Height(mm)43004100Transport Height(mm)4490
Maximum Length (mm)1280012150Maximum Length (mm)12200
Maximum Width (mm)41003100Maximum Width (mm)4400
Maximum Height (mm)43004950Maximum Height (mm)6070
Weight (T)3645Weight (T)38
Tire Configuration

Tire Configuration

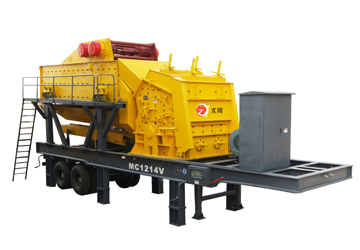

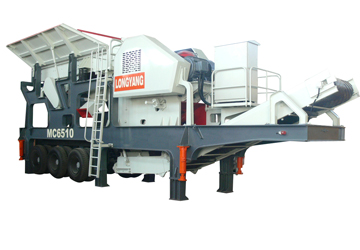

Jaw Crusher   PE600×900LE650×1000Impact CrusherPF-1214V
Max Feed (mm)500520Belt Conveyor for FeedingB800×18M

Discharge Opening Range (mm)
Belt Conveyor for Re-crushing Material
Capacity (t/h)50~120120~320
Discharging Belt Conveyor
Vibrating FeederZSW-380×96ZSW-490×110Vibrating Screen3YA1848
Main Belt Conveyer   B800×8MB1000×7M

Side-opening Belt Conveyer (Optional)
Iron Separator (Optional)RCYD(C)-8RCYD(C)-10
Three Segment Wheeled
    Mobile Crushing Equipment

Capacity (t/h)
Jaw CrusherCone CrusherFine Jaw CrusherVibrating Screen
Unit ModelHost ModelUnit ModelHost ModelUnit ModelHost ModelUnit ModelHost Model

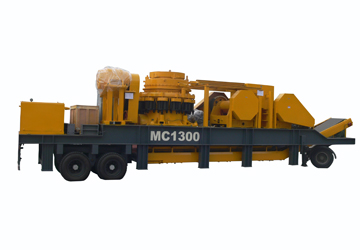

MC7510PE-750×1060 MC1300PYS-B1300MC1300 PEX-250×1000MC21603YK2160
