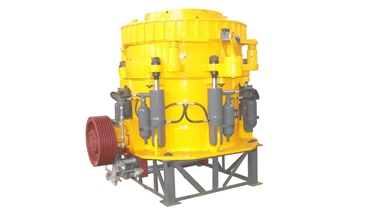

SC Series Hydraulic Cone Crusher

1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.

SC Series hydraulic cone crusher--reliable,high capacity,low energy consumption

Technical featuresAdvantageBenefit to you
Advanced crushing cavity designWell laminated crushingHigh efficiency ,high capacity
Optimized stroke designHigh crushing force
Strong and reliable hydraulic clamping systemAutomatic tramp release systemHigh availability
Hold a constant settingHigh efficiency
Simple and reliable liner retailing design
Easy and efficient liner replacementSimple maintenance,shorten the downtime
Cavity combination,increase flexibilityWide range of requirement and low-cost
Automatic hydraulic adjustment and clearing systemAutomation,user-friendlySimple routine maintenance

Main Components:

Clearance Dimensions:

Clearance required for removing Bowl axis.A2295237028852900
Base to bottom of oil pipingB378263593350
Base to top of feed hopperC1595168621192250
Clearance required for moving counter-shaft axis.D1767182323962560
Crusher centerline to our driven assemblyE1209120915661660
Size of bolt positionF×F1380138017661766
Diameter of bottom capG540400686540
Clearance required for moving head axis.H2673236633533126
Base to top of adjustment ringJ1292138313241650
Adjustment ring maximum diameterK1760176022582620

Technical Specification:

Max Feeding

Discharge Range

Motor Power
Capacity (t/h) —open circuit, closed discharge (mm)


  1.The given capacity is depending on open circuit operation,Capacities are relative to type of feeding and physics character, the reduction ratio ,etc.

  2.The minimum setting is that at which the crusher will operate without causing adjustment ring jump,Depending on the crusher characteristics of the rock,this setting can charge.

  Based on the feedback from more than 200 customers,To get high capacity and low cost running,Please do consider of the items as follow:

  1.The reduction ratio with a reasonable

  2.According on crushed material to select chamber

  3. Capacity of discharge conveyor is more than cone crusher

  4. Discharge port is not blocked

  5. Select Pre-screening, and increased closed-circuit screening of the vibrating screen

  6.Use Separators and Metal Detectors

  Impact conditions to capacity:

  1.Containing sticky material in feed

  2.Fine material of feeding is more than 10% of

  3. Not use the recommended power

  4. Too hard or too tough materials

Product Gradation Table (% passing through square mesh depending on the setting):

Gradation Curves:

  Product gradation curves are based on standard chamber .ALL gradation shown are approximate and depend on the type of material, moisture content,

  chamber selection,feed gradation And other factors.

  Case:SC150M type ,Broken ore
